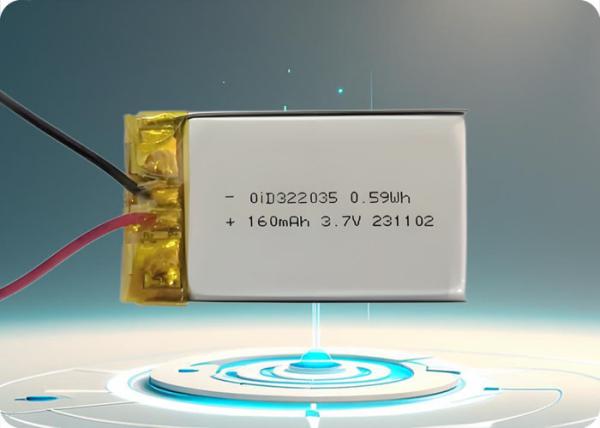

OiD322035-160 Lithium Polymer Battery 3.7V 160mAh 1C Discharge 500 Cycles

Brand Name : OiD

Model Number : OiD322035-160

Certification : Meets GB/T 18287-2013, IEC/EN61960, and UL1642 standards.

Place of Origin : China

MOQ : 100pcs

Name : Lithium Ion Battery

Battery Type : 3.7V, 160mAh Rechargeable

ODM : Free custom design for packs

High Energy Density : 250-300Wh/kg

Superior Cold Weather Performance : Reliable in Extreme Cold (-20°C to 60°C)

Cycle Life : 500+ cycles

Charging/ Discharging : 1C/ 1C

Flexible Form Factor : Thin, Customizable Pouch Design Lithium Ion Battery

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT, L/C, Western Union

Contact Now

Product Name:

OiD322035-160 Lithium Polymer Battery

Advantages:

High energy density and lightweight design.
Long cycle life with up to 500 cycles.
Stable performance across a wide temperature range.
Built-in protection circuit for overcharge, over-discharge, and short-circuit protection.
RoHS compliant, ensuring environmental safety.

Specifications:

Parameter	Value
Model	OiD322035-160
Nominal Voltage	3.7V
Nominal Capacity	160mAh (0.2C discharge)
Minimum Capacity	150mAh (0.2C discharge)
Charging Voltage	4.2V
Discharge Cut-off Voltage	3.0V
Standard Charging Current	0.2C
Max Charging Current	1.0C (20°C~45°C)
Standard Discharge Current	0.5C
Max Discharge Current	1.0C (25°C~55°C)
Weight	Approx. 3.7g
Dimensions	34.0mm (Max Length) x 20.5mm (Max Width) x 3.2mm (Max Thickness)
Internal Resistance	≤350mΩ
Shipment Voltage	3.90±0.05V

Cycle Life:

Cycle Condition	Cycle Life
Charge/Discharge Cycles	500 cycles at 0.2C, 23±2°C
Capacity Retention	≥80% after 500 cycles

Discharge Curve:

Operating Temperature Range:

Condition	Temperature Range
Charging Temperature	0°C ~ 45°C
Discharging Temperature	-20°C ~ 60°C
Storage Temperature	-10°C ~ 25°C (12 months, ≥85% capacity)
	-10°C ~ 45°C (6 months, ≥85% capacity)
	-10°C ~ 55°C (1 month, ≥90% capacity)

Certifications:

RoHS compliant.
Meets GB/T 18287-2013, IEC/EN61960, and UL1642 standards.

Key Features:

High Safety: Built-in protection against overcharge, over-discharge, and short circuits.
Long Lifespan: Up to 500 charge/discharge cycles with minimal capacity loss.
Wide Temperature Range: Operates efficiently in both low and high-temperature environments.
Lightweight Design: Ideal for portable and compact devices.

Applications:

Wearable devices (smartwatches, fitness trackers).
Bluetooth headsets and earbuds.
Medical devices.
IoT devices and sensors.
Portable consumer electronics.

OiD322035-160 Lithium Polymer Battery 3.7V 160mAh 1C Discharge 500 Cycles

Usage Warnings & Precautions:

Use only the specified charger to avoid overcharging.
Avoid short-circuiting the battery terminals.
Do not expose the battery to high temperatures or direct sunlight.
If the battery shows signs of swelling, leakage, or damage, discontinue use immediately.
Keep the battery away from children and pets.

Storage Guidelines:

Store the battery at 50% SOC (State of Charge) in a cool, dry place.
Recommended storage temperature: 20±5°C.
Charge the battery to 60% capacity every 3 months if not in use.

Warranty & Disclaimer:

Warranty: 12 months from the date of shipment.
