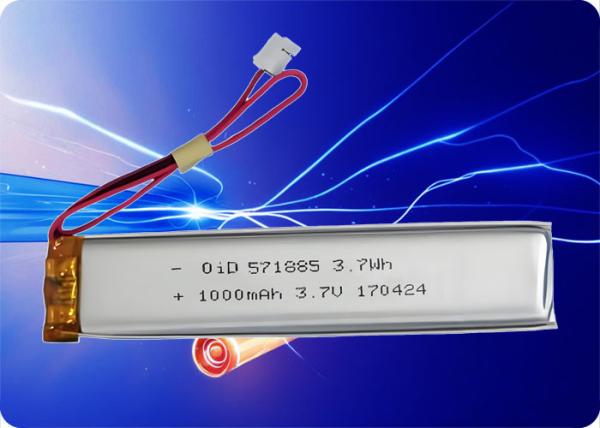

OiD571885N1060 3.7V 1060mAh 1C Discharge 300 Cycles

Brand Name : OiD

Model Number : OiD571885N1060

Certification : Compliant with international safety standards: GB/T 18287-2013, IEC 61960, UL 1642

Place of Origin : China

MOQ : 100pcs

Name : Lithium Ion Battery

Battery Type : 3.7V, 1060mAh Rechargeable

ODM : Free custom design for packs

High Energy Density : 250-300Wh/kg

Superior Cold Weather Performance : Reliable in Extreme Cold (-20°C to 60°C)

Cycle Life : 300+ cycles

Charging/ Discharging : 1C/1C

Flexible Form Factor : Thin, Customizable Pouch Design Lithium Ion Battery

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT, L/C, Western Union

Contact Now

Product Name

Sensor Li-ion Battery (Model: OiD571885N1060)

Advantages

High energy density with reliable performance
Integrated protection circuit for enhanced safety
Lightweight design (Approx. 20.0g)
RoHS compliant

Specifications

Parameter	Specification
Nominal Voltage	3.7V
Nominal Capacity	1060mAh (0.2C discharge)
Minimum Capacity	≥1000mAh
Charging Voltage	4.2V
Discharge Cut-off Voltage	3.0V
Standard Charge Current	0.2C
Max Charge Current	1.0C (20°C–45°C)
Standard Discharge Current	0.2C
Max Discharge Current	1.0C (25°C–60°C)
Internal Impedance	≤250mΩ (1kHz AC)
Weight	Approx. 20.0g
Dimensions (L×W×T)	86.0×18.8×5.7mm (pre-swelling)

Cycle Life

Test Condition	Performance
0.5C charge/discharge cycles at 23±2°C	≥300 cycles (≥80% capacity retention)

Discharge Curve

Operating Temperature Range

Condition	Temperature Range	Performance
Charging	0°C to 45°C	Max 1.0C charge rate (20-45°C)
Discharging	-20°C to 60°C	Max 1.0C discharge rate (25-60°C)
Storage (50% SOC)	-10°C to 25°C	12 months (≥85% capacity retention)
Storage (50% SOC)	-10°C to 45°C	6 months (≥85% capacity retention)
Storage (50% SOC)	-10°C to 55°C	1 month (≥90% capacity retention)

Certifications

Compliant with international safety standards: GB/T 18287-2013, IEC 61960, UL 1642

Key Features

Overcharge/over-discharge/short-circuit protection
Low self-discharge rate (<3% per month)
Customizable connector options available

Applications

Industrial sensors
Medical monitoring devices
IoT equipment
Portable electronics

OiD571885N1060 3.7V 1060mAh 1C Discharge 300 Cycles

Usage Warnings & Precautions

Use only with specified chargers
Avoid mechanical damage or exposure to liquids
Discontinue use if swelling or leakage occurs
Keep away from children

Storage Guidelines

Store at 20±5°C (recommended)
Maintain 40-60% charge for long-term storage
Recharge every 3 months if unused

Warranty & Disclaimer

12-month quality warranty
Proper usage required for warranty coverage
