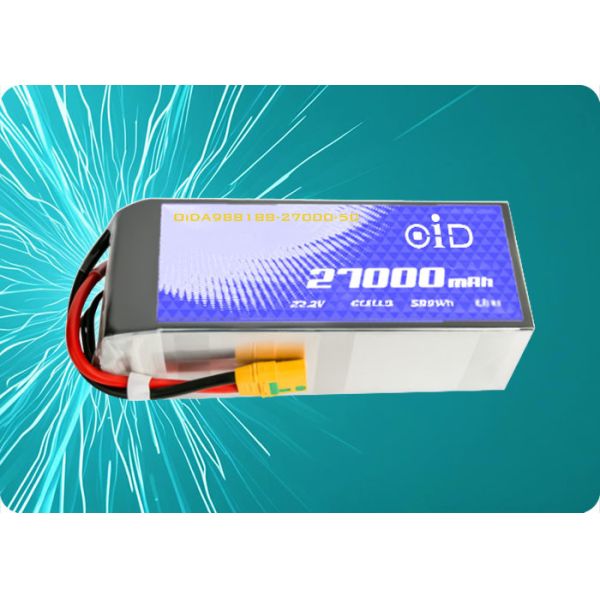

22.2V 27000mAh Drone Battery 100A Peak Discharge 200 Cycles

Brand Name : OiD

Model Number : OiDA988188-27000-5C-22.2

Certification : Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).

Place of Origin : China

MOQ : 100pcs

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT,L/C,Western Union

Name : 27000 mAh Battery

Battery Type : 22.2V 27000mAh Rechargeable

ODM : Free custom design for packs

Cycle Life : 200+ cycles

Charging/ Discharging : 13.5A/60A

Operating Temperature : -20°C~60°C

Compatibility : XT90S-F (discharge), JST-XHR-7P (charge)

Weight/ size : 2340g/20x 91.5 x 61mm

Contact Now

OiDA988188-27000-5C-22.2 Drone Battery 22.2V 27000mAh 100A Peak Discharge 200 Cycles

Product Name

OiDA988188-27000-5C-22.2 Drone Battery

Advantages

Ultra-high capacity for extended flight endurance
Optimized 5C discharge rate for stable power output
Lightweight design with robust cycle life

Specifications

Parameter	Value
Nominal Voltage	22.2V (6S1P)
Nominal Capacity	27000mAh (0.5C discharge)
Minimum Capacity	25770mAh
Internal Impedance	8.36±1.5mΩ (1kHz AC method)
Charging
Standard Charge Current	5.4A (0.2C)
Fast Charge Current	13.5A (0.5C)
Max Charge Voltage	25.2V
Discharging
Standard Discharge Current	5.4A (0.2C)
Max Continuous Discharge	60A (2.2C)
Peak Discharge Current	100A (≤3 seconds)
Discharge Cut-Off Voltage	17.1V (0.2C) / 18.0V (≥0.5C)
Dimensions	207±2.5mm (L) x 91.5±1.5mm (W) x 61±1.5mm (H)
Weight	2340±100g
Connectors	XT90S-F (discharge), JST-XHR-7P (charge)

Cycle Life

Test Condition	Cycles
0.5C CC/CV charge to 25.2V, 60A discharge to 18.0V (Capacity ≥80% of initial)	200

Operating Temperature Range

Operation	Temperature Range	Current Limit
Charging	10°C to 45°C	≤13.5A (0.5C)
Discharging	-20°C to 60°C	≤60A (10°C–45°C recommended)
Storage	-10°C to 45°C	N/A

Certifications

Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).

Key Features

Fast Charging: Supports 0.5C charging (3 hours).
High Efficiency: ≥98% discharge efficiency at 20°C.
Durable Design: Aluminum foil packaging with impact resistance.

Applications

Heavy-lift industrial drones
Long-range aerial mapping
High-power FPV racing drones

Usage Warnings & Precautions

Voltage Limits: Do not exceed 25.2V (charge) or discharge below 17.1V (0.2C).
Temperature: Avoid charging below 10°C or discharging above 60°C.
Safety: Never disassemble or expose to water/fire.

Storage Guidelines

Short-term: Store at 21.6–23.4V (23±5°C, 65±20% RH).
Long-term: Maintain 21.6–23.4V; activate every 3 months (0.2C cycle).

Warranty & Disclaimer

12-month warranty from shipment date.
Void if misused or stored improperly.
