22.2V 22000mAh Drone Battery with 90A Peak Discharge

Brand Name : OiD

Model Number : OiD390190-22000-25C-22.2

Certification : Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).

Place of Origin : China

MOQ : 100pcs

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT,L/C,Western Union

Name : Drone Battery

Battery Type : 22.2V 22000mAh Rechargeable

ODM : Free custom design for packs

Charging/ Discharging : 11A/60A

Operating Temperature : -20°C~60°C

Cycle Life : 300+ cycles

Compatibility : XT90S-F (discharge), JST-XHR-7P (charge)

Weight/ size : 2600g/208 x 91.5 x 61.5mm

Contact Now

OiD390190-22000-25C-22.2 Drone Battery 22.2V 22000mAh 90A Peak Discharge 150 Cycles

Product Name

OiD390190-22000-25C-22.2 Drone Battery

Advantages

Ultra-high capacity for extended flight endurance
High-rate 25C discharge for demanding applications
Optimized thermal stability for reliable performance

Specifications

Parameter	Value
Nominal Voltage	22.2V (6S1P)
Nominal Capacity	22000mAh (0.2C discharge)
Minimum Capacity	21000mAh
Internal Impedance	5.6±1.6mΩ (1kHz AC method)
Charging
Standard Charge Current	4.4A (0.2C)
Fast Charge Current	11A (0.5C)
Max Charge Voltage	25.2V
Discharging
Standard Discharge Current	4.4A (0.2C)
Max Continuous Discharge	60A
Peak Discharge Current	90A (≤3 seconds)
Discharge Cut-Off Voltage	18.0V (0.2C) / 21.0V (≥0.5C)
Dimensions	208±5mm (L) x 91.5±1.5mm (W) x 61.5±2.5mm (H)
Weight	2600±100g
Connectors	XT90S-F (discharge), JST-XHR-7P (charge)

Cycle Life

Test Condition	Cycles
0.5C CC/CV charge to 25.2V, 60A discharge to 21.0V (Capacity ≥80% of initial)	150

Operating Temperature Range

Operation	Temperature Range	Current Limit
Charging	10°C to 45°C	≤11A (0.5C, 15°C–45°C)
Discharging	-20°C to 60°C	≤60A (15°C–45°C recommended)
Storage	-20°C to 35°C	N/A

Certifications

Complies with GB31241-2014/GB/T 18287-2013 (China National Standard).

Key Features

Fast Charging: Supports 0.5C charging (3 hours).
High Efficiency: ≥98% discharge efficiency at 20°C.
Durable Design: Aluminum foil packaging with impact resistance.

Applications

Heavy-lift industrial drones
Long-range aerial mapping
High-power FPV racing drones

Usage Warnings & Precautions

Voltage Limits: Do not exceed 25.2V (charge) or discharge below 18.0V (0.2C).
Temperature: Avoid charging below 10°C or discharging above 60°C.
Safety: Never disassemble or expose to water/fire.

Storage Guidelines

Short-term: Store at 22.5–23.4V (25±3°C, ≤75% RH).
Long-term: Maintain 22.5–23.4V; activate every 3 months (0.2C cycle).

Warranty & Disclaimer

12-month warranty from shipment date.
Void if misused or stored improperly.

Product Tags:

150 Cycles Drone Battery

Drone Battery 22.2V

Drone Battery 22000mAh

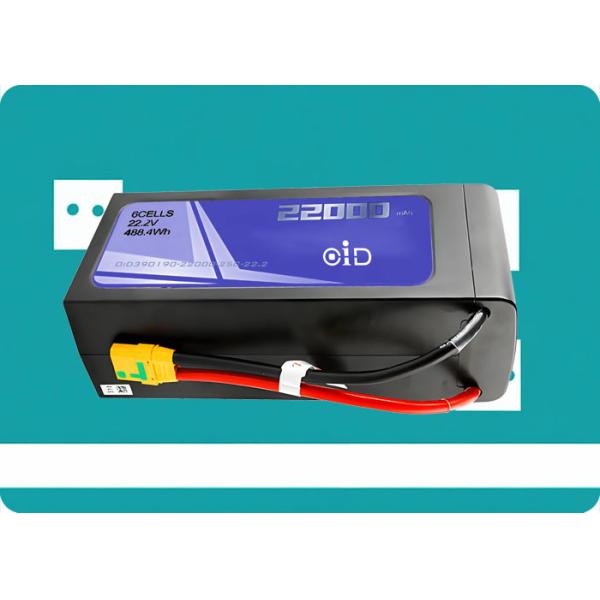

22.2V 22000mAh Drone Battery with 90A Peak Discharge Images
